While standard DVD players can play discs, those with USB ports can also play digital videos from a USB drive. Want to know what video formats your DVD player plays and why your MP4, MKV, or WMV files show an "unsupported file" error on your device? In this guide, we'll explain everything you need to know about DVD player formats and settings, and show you step-by-step how to easily convert and play any unsupported video on your DVD player without any playback errors. Let's explore more details below.

🌟 Key Takeaways:

DVD Player	Format	Notes
Supported Video Formats	MPEG-2 (VOB)	The ONLY format to burn on standard DVD-Video discs.
	MPEG-1 (VCD)	Outdated.
	DIVX/Xvid (AVI)	Supported by DIVX-certified players.
	MPEG-4 (MP4)	Not supported in DVD disc structure; only on some USB-compatible players.
Supported Audio Formats	AC-3 (Dolby Digital)	/
	PCM
	MP2
	DTS	Only on some later models.
Supported Disc Types	DVD-R/DVD+R	DVD-R offers highest compatibility, followed by DVD+R.
Supported Disc Types	DVD-RW/DVD+RW	Not widely supported.
Other Requirements	Resolution	PAL: 720 X 576 NTSC: 720 X 480
	Frame rate	PAL: 25fps NTSC: 29.97fps
	Bitrate	MPEG-2: up to 9.8 Mbit/s (9,800 kbit/s) MPEG-1: up to 1.856 Mbit/s (1,856 kbit/s)

What Format Plays on DVD Players

1. MPEG-2

MPEG-2, also known as H.222 or H.262, is the standard DVD video format that will play on all DVD players. It's typically packaged in the .VOB container (a subset of the MPEG program stream standard) and stored in the root of the VIDEO_TS folder.

To make a video playable on a DVD player, converting it to MPEG-2 VOB format is the most effective first step.

2. MPEG-1

DVD players can also read MPEG-1, the standard video format for VCDs.

Compared to MPEG-2, MPEG-1 is much older and uses a lower bitrate to record video and therefore has lower quality. Additionally, the MPEG-1 format does not support interlaced video, while MPEG-2 supports both interlaced and progressive content and can handle different frame rates.

3. DIVX/Xvid

DIVX-certified DVD players can also play AVI (DIVX/Xvid) files. Normally, you'll see the DIVX logo on the front of your device.

But note that the DIVX or Xvid files should be stored on a data DVD with resolutions lower than 864 x 640.

4. MPEG-4

Some modern DVD players come with MPEG-4 format capabilities and can play MPEG-4 MP4 videos with proper settings via USB. You can find out if your DVD player supports MPEG-4 by checking if it is labeled on the device.

💡 Note: If your DVD player claims to support MP4, but your MP4 videos still fail to play, the problem is usually caused by an unsupported video codec (such as H.265/HEVC), high frame rate, or high resolution.

- Supported Audio Formats

Besides video format, the audio format also determines whether a DVD player can successfully play a video.

The best audio format for DVD players is AC3 (also known as A52), which has a sampling rate of 48 kHz, a number of channels from 1 to 5.1 (6), and a bitrate of up to 448 kbit/s. In addition, PCM and MPEG-1 Audio Layer II (MP2) are also common audio formats for DVD players.

Some players may also support the DTS format and can pass it to compatible decoders, such as home theater systems.

- Supported Disc Types

DVD discs come in multiple types. For best compatibility, you should use a DVD-R disc, as all DVD players support it.

DVD+R also has good compatibility with many standalone players, but note that DVD-RW/DVD+RW are not widely supported.

- Other Important DVD Settings

Resolution, frame rate, and bitrate also affect whether your DVD player plays a video.

Depending on the analog system used in your region (PAL or NTSC), your videos will also need to meet the following requirements:

	PAL	NTSC
Region	Europe, China, Australia, and South America	North America, Japan, Taiwan, and South Korea
Resolution	720 x 576	720 x 480
Frame rate	25fps	29.97 fps
Bitrate	MPEG-2: up to 9.8 Mbit/s (9,800 kbit/s) MPEG-1: up to 1.856 Mbit/s (1,856 kbit/s)

❓ Question: Can DVD Player Play MP4, MKV, or WMV

In short, standard DVD players cannot play MKV or WMV files. Some modern DVD players with USB ports can play MP4 files, but they often fail if the file uses an unsupported codec like HEVC, has a high resolution or frame rate.

If you get an "unsupported file" error when trying to play these videos on your DVD player, the easiest solution is to convert them to a standard DVD compatible format like MPEG-2 (VOB). Keep reading to learn how to convert unsupported videos for smooth playback on your DVD player.

👉 Fix: How to Convert Video to Play On Your DVD Player

All DVD players support MPEG-2 format, and that makes MPEG-2 the ideal DVD player format you can convert your video files to. But to handle the conversion, we need to use a dedicated video converter program like WonderFox HD Video Converter Factory Pro.

The software can help you convert video to MPEG-2 format (in .vob extension) supported by DVD players without extra configuration. Just free download free download the software and follow the instructions to start your conversion now.

Step 1: Add Your Video Files

Launch HD Video Converter Factory Pro and open Converter. Next, click Add Files to import the videos or directly drop the files here.

At the bottom of the program, you can specify an output path in advance.

Step 2: Choose the VOB Format

On the right side of the converter, hit on the format image to open the output format page. Then, head to the Video category and select VOB as the output format.

💡 Tip: You can open Parameter settings and adjust the resolution, frame rate, and norm according to your region. Enable the Deinterlace option if you are converting older AVI files or camera footage with horizontal motion lines to improve final image clarity.

Step 3: Convert Files Now

Finally, click the output folder option at the bottom to set an output folder and hit Run to start the conversion. After that, transfer the converted files to your USB and connect the USB to your DVD player. Now, you should be able to play the video on your DVD player without issue.

Alternative: Burn MP4/MKV/WMV to DVD to Play on Standard DVD Players

You can also burn unsupported videos to a blank DVD to play on standalone DVD players.

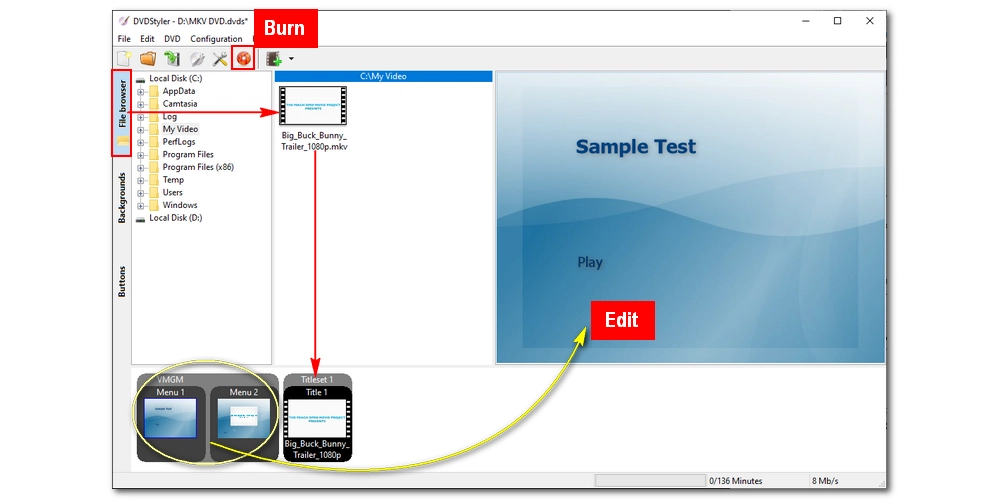

The cross-platform open-source DVDStyler is a good DVD burning program that can help you easily put videos onto DVD in a standard DVD structure with interactive menus. You can follow these steps to burn your videos files.

Step 1: Download DVDStyler at https://www.dvdstyler.org/en/downloads.

Step 2: Insert a blank DVD into your computer's DVD drive.

Step 3: Open DVDStyler and follow the prompts to create a new project, including the disc specs and the template.

Step 4: Go to File browser on the left-side panel and locate the folder that stores your video files. Then, drag the videos into Titleset Manager at below. The progress bar at the bottom of the interface will show you how much DVD space is occupied.

Step 5: On the upper-right window, you can edit the VMGM templates and the menus to customize the DVD as you wish. You can see more details about how to make a professional DVD at https://www.dvdstyler.org/en/documents?id=70.

Step 6: When you are done with editing, click the red Burn button (a burning disc) to burn your videos to DVD.

After the DVD is made, insert the DVD into your DVD player and enjoy the movies.

Conclusion

DVD players don't always play the disc or video you insert. One reason is that the DVD file format is not supported.

After reading this article, I believe you should now know what formats your DVD player can read. And if you have unsupported videos, you can choose to burn them onto a DVD or convert them to the correct DVD player format to play from USB. That's all I want to share in this post, hope it's useful to you. Thanks for reading. Have a nice day!

FAQs

1. How many DVD formats are available?

With the update of technology, DVD players can play a variety of formats. These include MPEG-2, MPEG-1, DivX, Xvid, and MPEG-4.

2. What is the best video format for DVD players?

In terms of compatibility, MPEG-2 is the best video format for DVD players.

3. What video format to burn DVDs?

MPEG-2 is the most compatible DVD format that any DVD player will read. Therefore, it's recommended that you burn MPEG-2 videos to DVD.

4. What codec does a DVD player use?

The codecs used by DVD players vary by model. Generally speaking, all DVD players use the MPEG-2 and MPEG-1 video codecs as well as the AC-3, MP2, and PCM audio codecs. Newer DVD players also use DivX, Xvid, MPEG-4 codecs and support DTS audio.

5. How to play MP4 on a DVD player from USB?

Check if your DVD player supports MPEG-4. In case you get a "file not supported" error, convert the MP4 file to MPEG-2 VOB format using a video converter like WonderFox HD Video Converter Factory Pro, copy the VOB file to a FAT32 USB drive, and plug it into your player.

6. Can DVD players play MKV files?

No, MKV is not supported by traditional DVD players. To play MKV from USB on a DVD player, you need to convert MKV to a DVD-compatible format (such as VOB or DivX AVI) or burn the MKV file to a physical DVD disc using DVD authoring software.

Alternatively, you can use a Blu-ray player, such as Sony UBP series models, to play MKV directly via USB.
